High Manganese Steel Insert Titanium Alloy Bars and hardfacing Hammers
- 2024-04-09
- view count：
High manganese steel hammer is a commonly used crusher hammer in the mining and cement industries. High manganese steel material has high impact toughness and good work hardening ability, making it safe and reliable to use. However, its initial hardness is low and it is not wear-resistant under low impact and the wear conditions of sharp abrasive particles. Under this circumstance, Luoyang ZHILI developed high mangnese steel insert titanium alloy bars and hardfacing hammers to improve the wear resistance of the hammers and increase its service life.
1 Introduction to alloy rods and hardfacing
The alloy bar is made of steel-bonded cemented carbide suitable for the heat treatment process of high manganese steel. The main wear-resistant particles are tungsten carbide (WC) and titanium carbide (TiC). The binder is alloy steel. It is made by powder metallurgy and has high harness, high wear resistance and certain impact toughness. The alloy bars can be placed in areas that require wear resistance as required to resist cutting by hard materials, thus showing excellent wear resistance. High manganese steel insert titanium alloy bars adopts out-of-furnace refining and integral pressure casting technology. It is cast and processed by inlaying carbide bars on the working surface of the hammer.

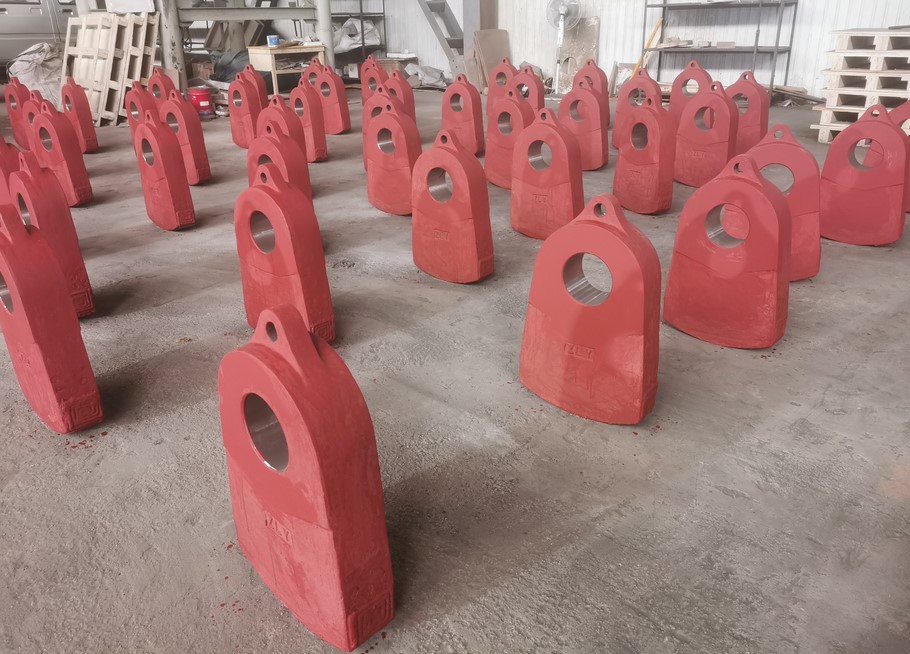

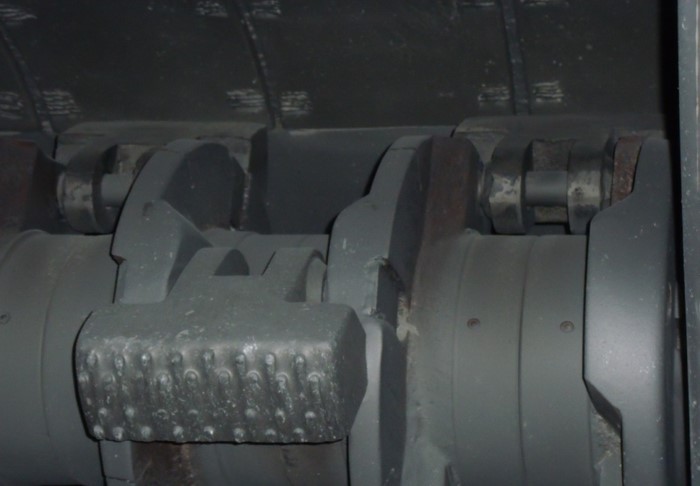

Pictures of High Manganese Steel Insert Titanium Alloy Bars Hammers
Hardfacing is a technology that uses a welding process to deposit filler metal on the surface of metal materials or parts. The welding layer is usually 2 layers and the thickness of the hardfacing layer is 5-6mm. It is widely used in the manufacture and repair of castings with wear resistance, corrosion resistance or special performance requirements. Hardfacing Hammers can improve the wear resistance, heat resistance and corrosion resistance of the hammers.

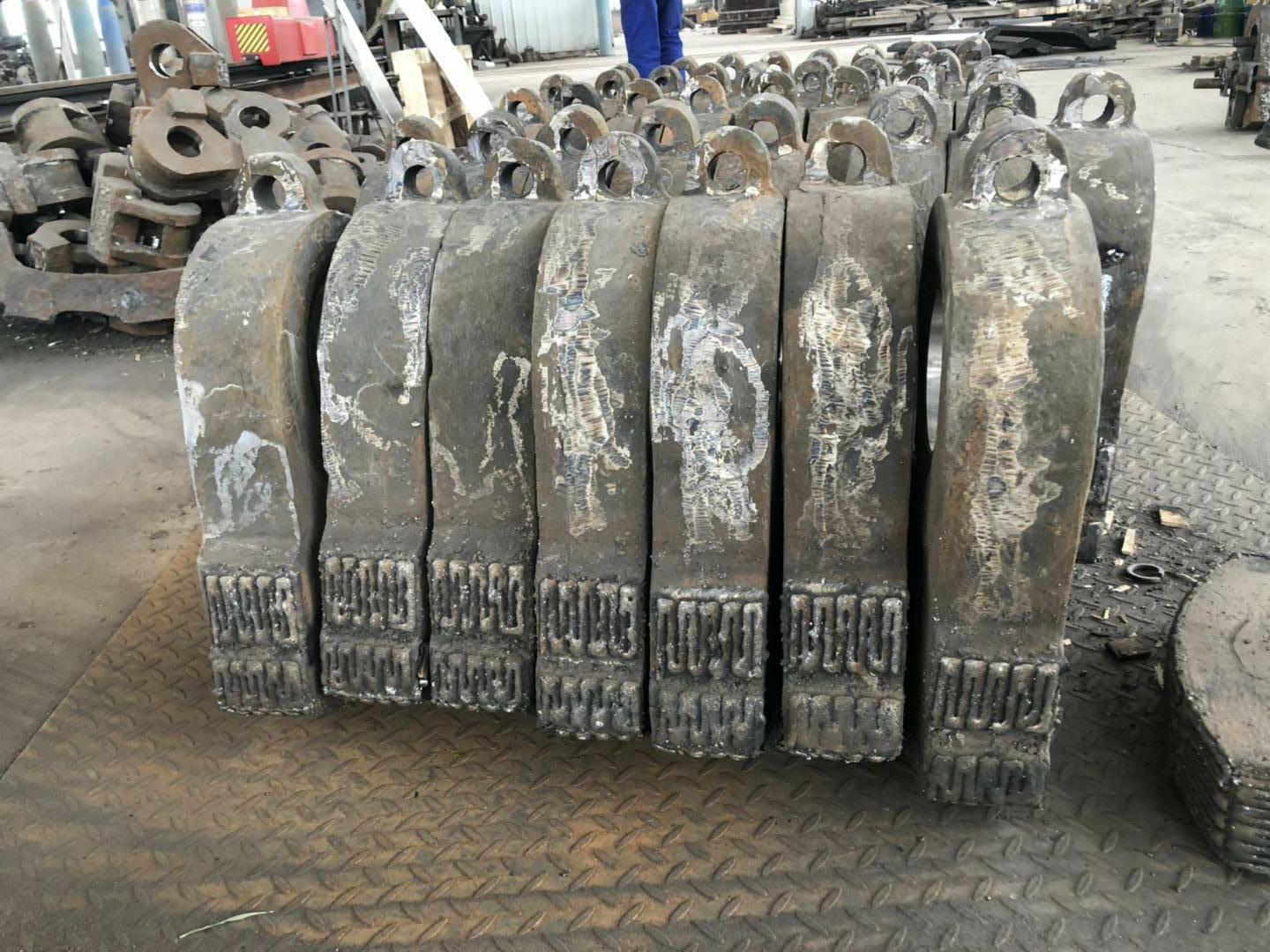

Pictures of Hardfacing Hammers
2 Scope of application of high manganese steel insert titanium alloy bars and hardfacing hammers
In summary, the inlay-cast alloy bar and hardfacing are both to improve the wear resistance and service life of the hammer. These characteristics of high manganese steel Insert titanium alloy bars and hardfacing hammers make them suitable for double-rotor crushers, clinker crushers and crushing equipment with good breakability of limestone, large feed particle size, large crushing capacity and long cycle and various complex and harsh working conditions.
The high manganese steel insert titanium alloy bars and hardfacing hammers produced by our company have been widely used in well-known cement plants such as Lafarge and Cemex, and have received good market response. Friends who want to know more can send us an email and we will reply to you as soon as possible.
