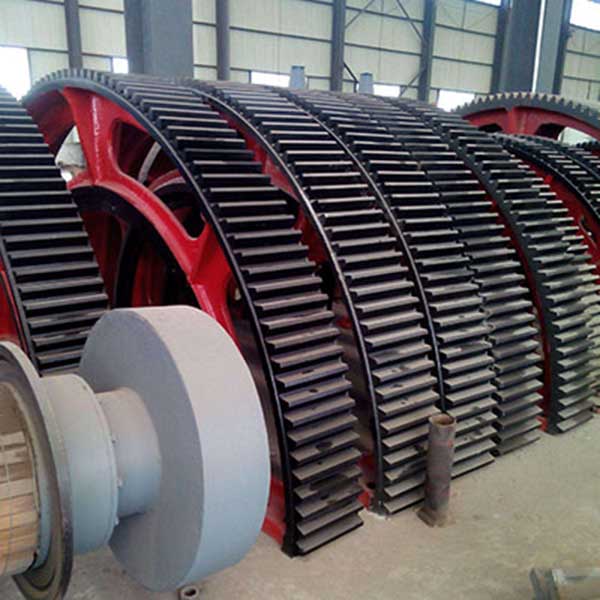

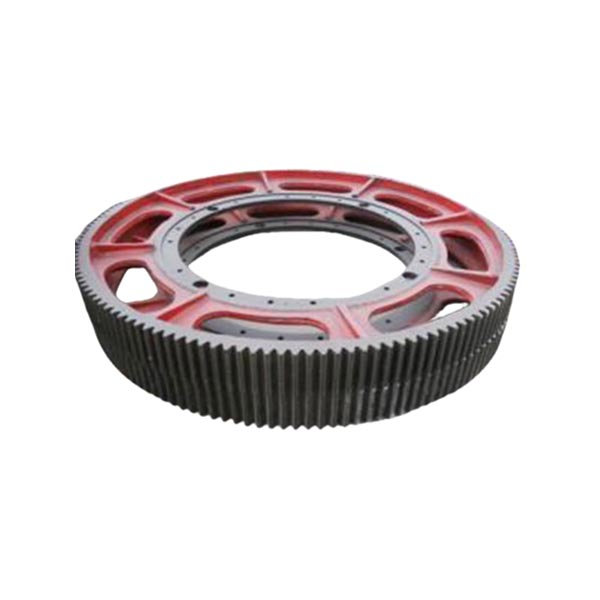

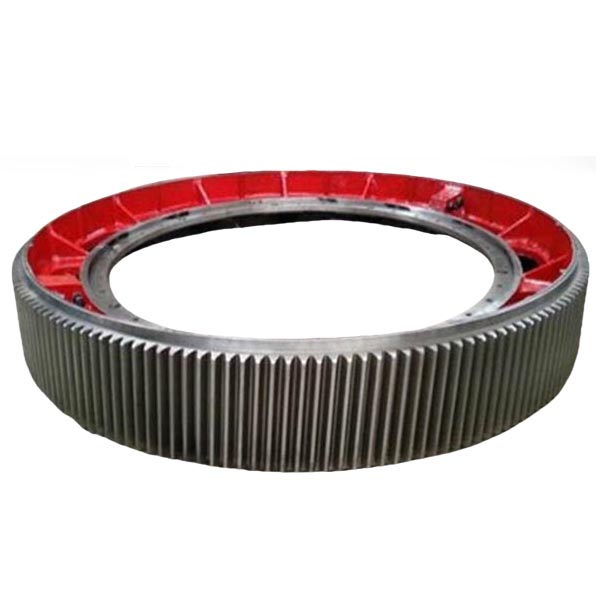

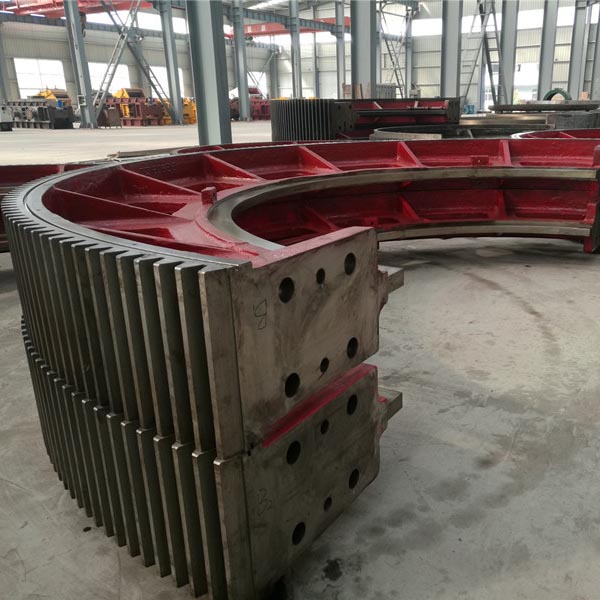

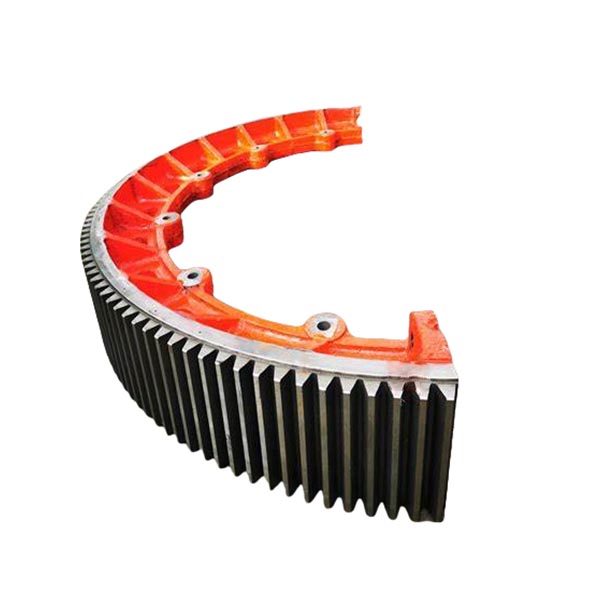

Gear Wheel
OEM tailor design
Product name: Ball Mill Gear Wheel,Rotary Kiln Gear Wheel,Mill large Gear Wheel
Production process: Casting,Forgings
Applicable machines: Ball Mill, Rotary Kiln, etc.
Applicable industries: Cement, stone,concrete, coal, steel, etc.
Adaptable materials: granite, basalt, limestone, river pebbles, cement clinker, coal, etc.
Material types: 20CrMnTi,20CrMnMo,20CrNiMo,20CrNi2Mo,12CrNi3,low carbon alloy steel, 40CrNiMo, 38CrMoAl,25Cr2MoV, 38CrMoAl,etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.
If you need detailed technical information of the product or cannot find the product you need on the website, please email us（zhiliwearparts@lyzhili.com）, because we are a customized factory for crusher spare parts.

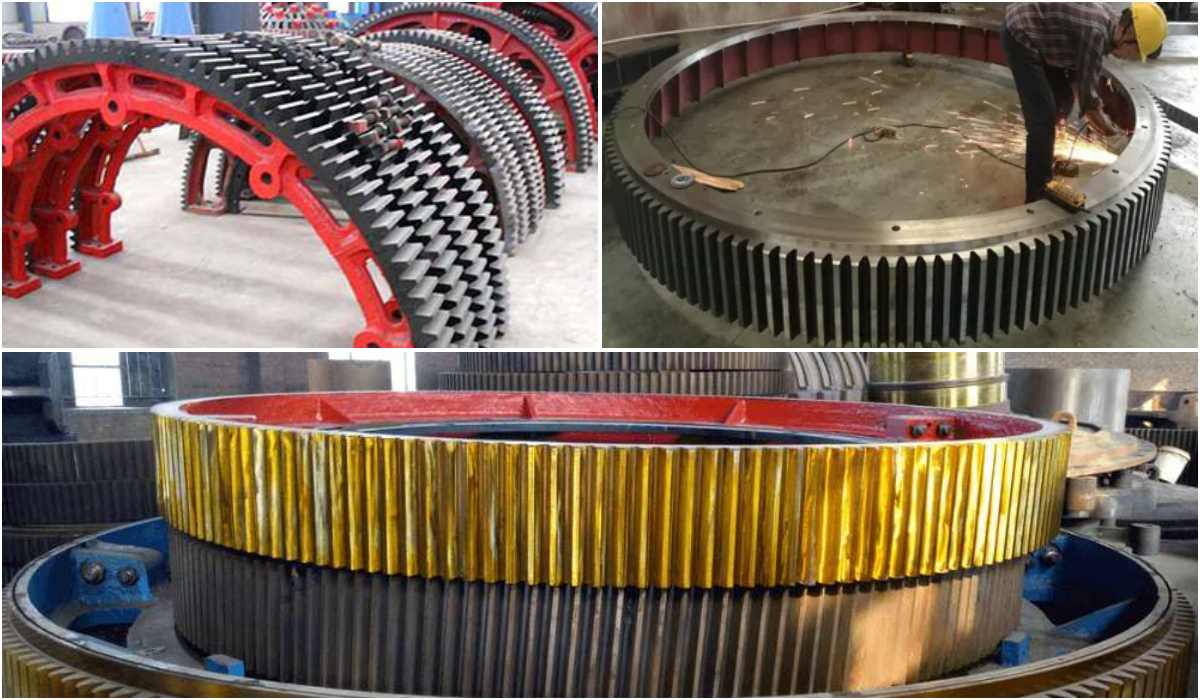

Usually we use forgings, bar stock, or casting with good toughness that are easy to machine, often using forgings
First normalizing the rough part to improve their machinability and roughing
In the semi-finishing process, the gears are basically formed, after which they are processed to obtain the mechanical properties of the gears. According to the requirements of the working conditions and the materials used ,the quenching and tempering, the carburizing quenching, and the tooth surface high-frequency induction are used. Heat quenching, nitriding and other processes make it possible to obtain the mechanical properties that should be obtained under different working conditions.
Finally, the gears need precision machining.
Steel grades for different working conditions
Medium hard gear (HB220-320): 40Cr, 42CrMo, 40CrNiMo, 38CrMoAl and other medium carbon alloy steels.
Hardened gear (HRc56-62): 20CrMnTi, 20CrMnMo, 20CrNiMo, 20CrNi2Mo, 12CrNi3, low carbon alloy steel.
Nitriding gears: 25Cr2MoV, 38CrMoAl.
For large diameter (D> 400-600mm) tooth blanks can not be forged, cast steel tooth blanks can be used, generally used ZG45, ZG 40Cr, ZG 42CrMo, ZG 40CrNiMo, ZG 38CrMoAl and other medium carbon alloy steel. The steel composition of the cast steel is equivalent to the chemical composition of the forged steel and only increases the Si content to 0.60-0.80%.
