Valve plate
OEM tailor design

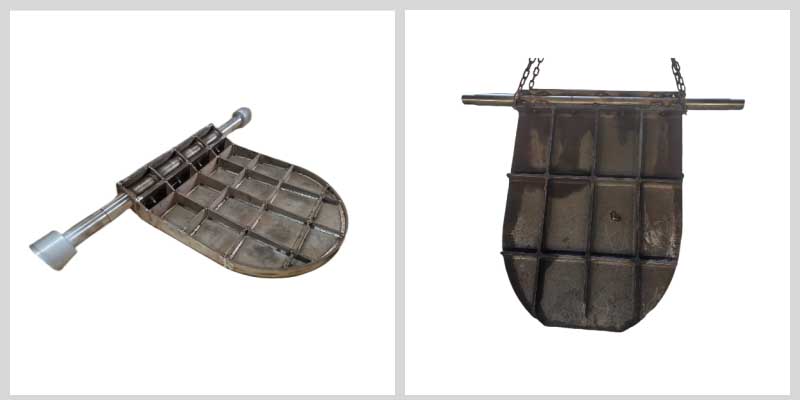

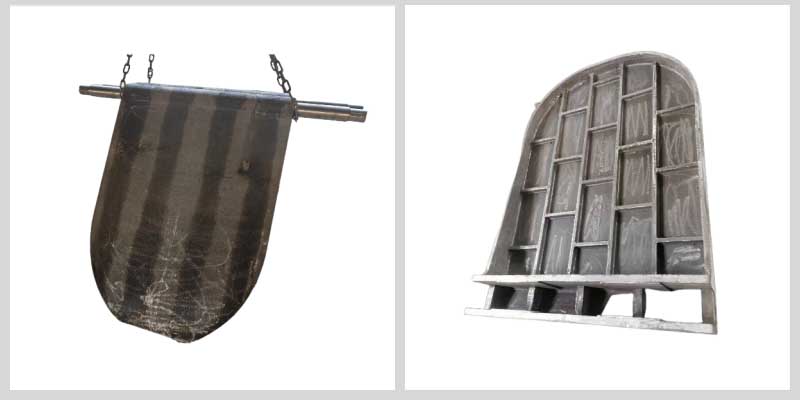

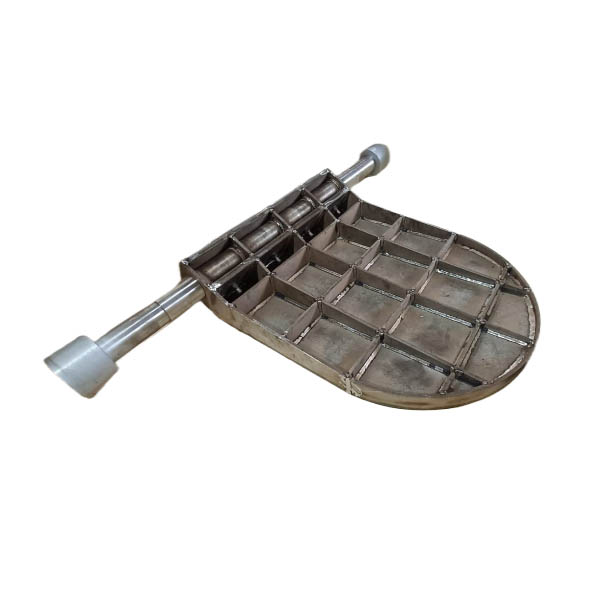

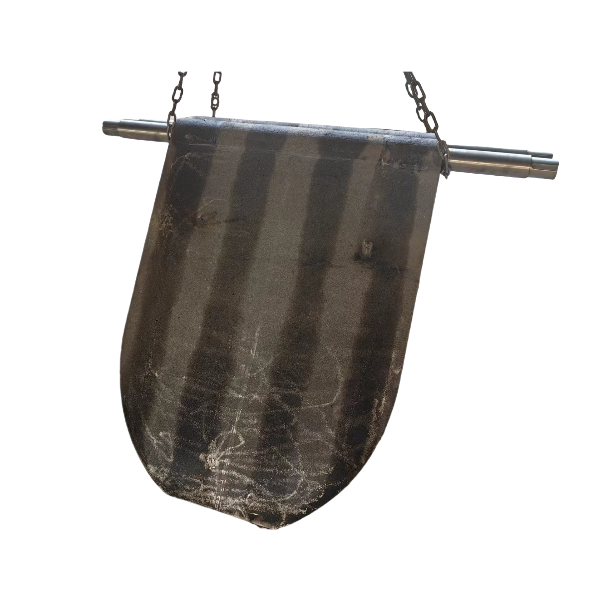

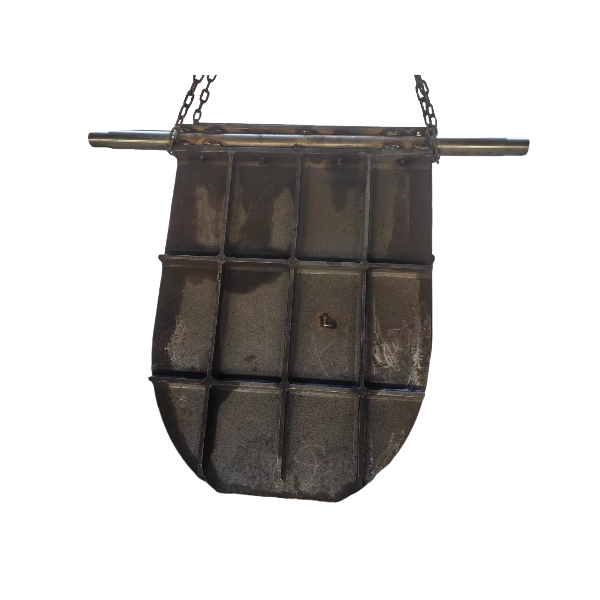

Product name: Heat-resistant steel Valve plate/Valve plate/Cement kiln flap valve/Preheater flap valve
Production process: Precision casting, Sand casting, Lost foam casting
Material types: 1Cr10MoW2VNbN,12Cr1MoV,25Cr2MoVA,12Cr2MoWVTiB,etc.
Applicable industries: Cement, metallurgy, chemical industry, steel, pellets, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.
If you need detailed technical information of the product or cannot find the product you need on the website, please email us（zhiliwearparts@lyzhili.com）, because we are a customized factory for heat-resistant steel castings.
Application: A commonly used ash hopper unloading device, installed on the cement kiln tail preheater. The flap valve is usually used in conjunction with the preheater and can rotate around the axis.
Features: excellent self-opening and closing, heat corrosion resistance, sealing, impact strength and other characteristics.
1. It can use the weight of the material to achieve automatic opening and closing, and ensure that the valve plate moves a short distance, the frequency is high, and the material is discharged evenly;
2. The flap valve is made of heat-resistant steel and has high-temperature erosion resistance to cement alkaline materials, ensuring its effective service life;
3. When discharging, it can prevent hot air from entering the discharge pipe and prevent material dust, thereby not affecting the discharge rate and improving the working environment;
4. The impact strength is mainly reflected in the performance of the lining to resist external force impact, especially when testing whether there are foreign objects in the cone and the discharge pipe, the lining needs to have high impact strength.
Our products can be used in harsh working conditions and are easy to install.
