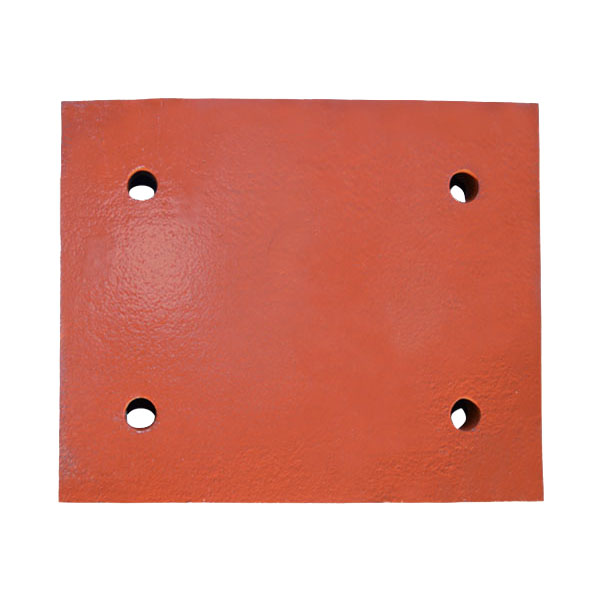

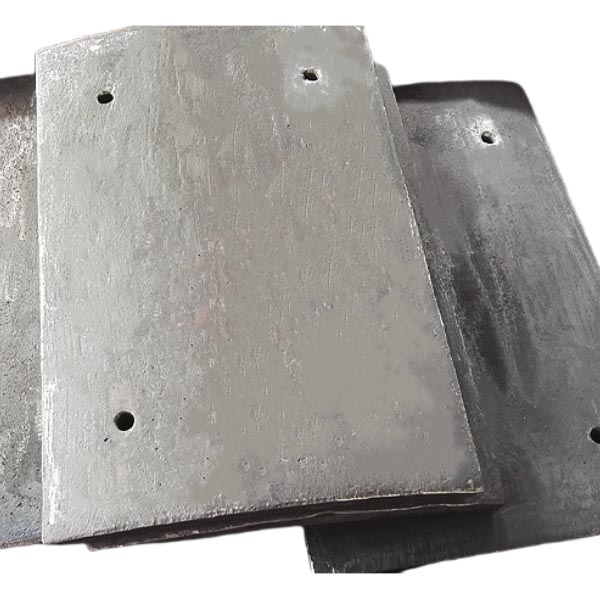

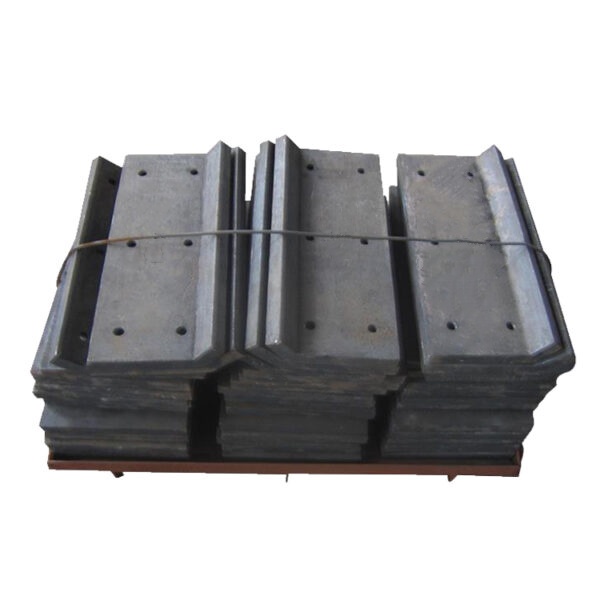

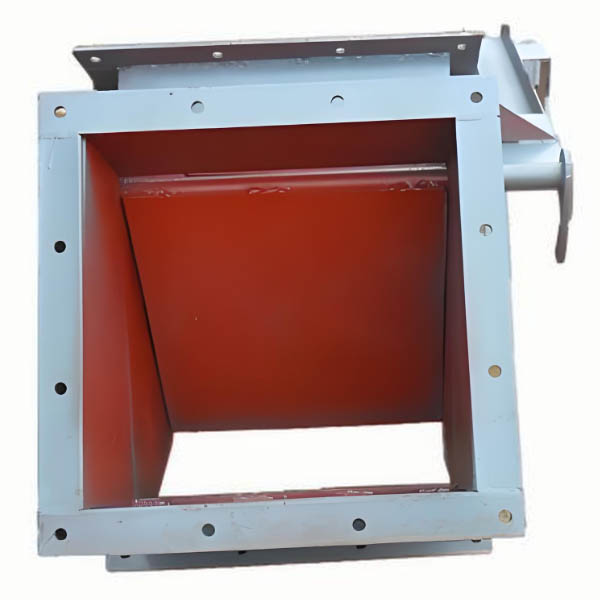

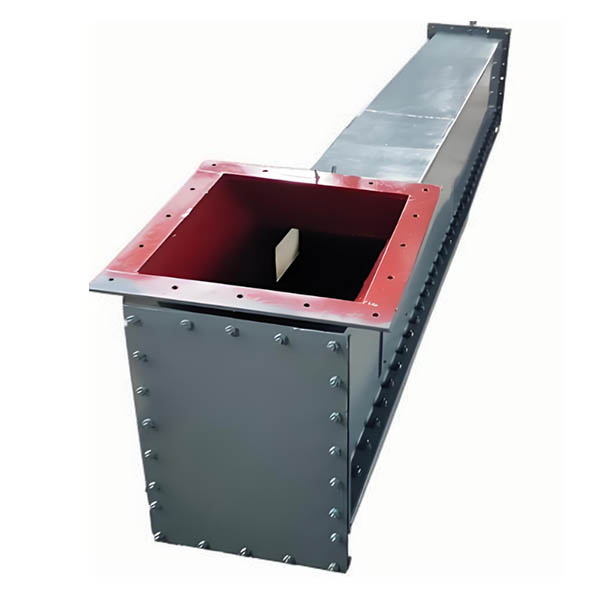

Wear liner plates for chutes
OEM tailor design
Product name: Wear liner plates for chutes
Production process: Casting
Material types: High manganese steel(Mn13Cr2/Mn18Cr2),high chromium cast iron,ceramic,rubber,bimetallic,Ceramic rubber composite,etc.
Applicable industries: mining, cement plants, coal, steel, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.
If you need detailed technical information of the product or cannot find the product you need on the website, please email us（zhiliwearparts@lyzhili.com）, because we are a customized factory for crusher spare parts.

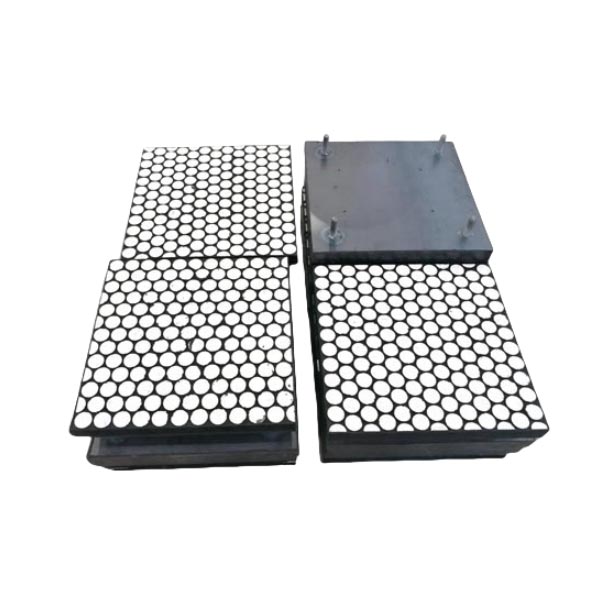

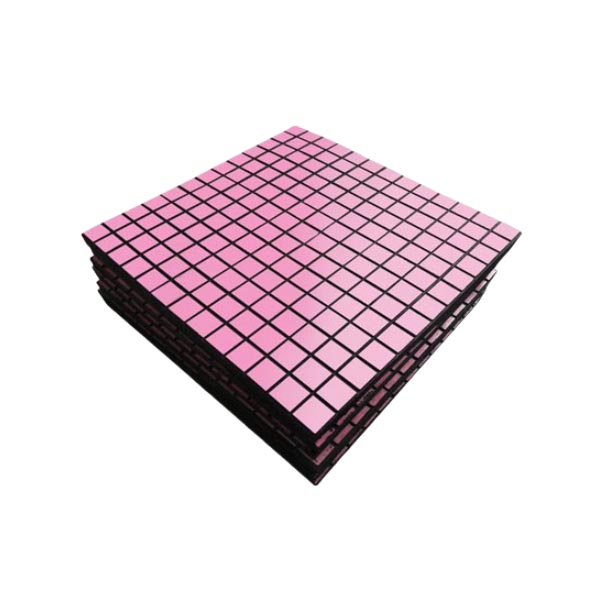

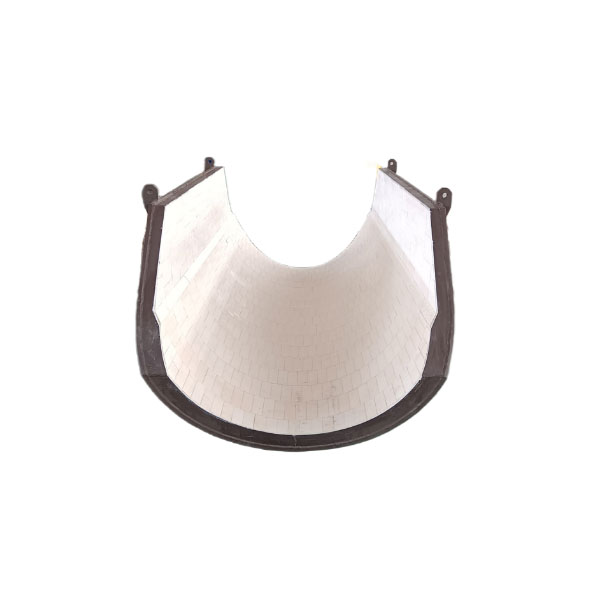

Whether you are handling large rocks, heavy loads or high-speed materials, our ceramic liners provide excellent wear resistance, impact absorption and corrosion protection. We also offer bimetallic liners that combine the benefits of wear-resistant steel and impact-resistant alloys to provide superior performance in demanding applications.
● Same wear resistance guaranteed from surface down to 75% of the overlay.
● Optimal carbide composition to provide good combination of wear resistance and homogenous bonding.
● Good formability due to staggered cracking pattern on overlay surface.
| Standard overlay thickness | Standard plate sizes | ||||
| Single pass | Multiple passes | ||||
| Metric unit | Imperial unit | Metric unit | Imperial unit | Metric unit | Imperial unit |
| 3 on 6 | 1/8” on 1/4” | 6 on 6 | 1/4" on 1/4” | 1.5m × 3.0m | 5' × 10’ |
| 5 on 8 | 3/16”on 5/16" | 6 on 10 | 1/4" on 3/8” | 1.5m × 3.0m | 5' × 10’ |
| 10 on 10 | 3/8" on 3/8” | 1.5m × 3.5m | 5' x 11.5’ | ||
| 12 on 12 | 1/2" on 1/2” | 1.5m × 3.5m | 5' x 11.5’ | ||
| 20 on 10 | 3/4" on 3/8” | 1.5m × 3.5m | 5' x 11.5’ | ||
Wear liner plates for chutes are widely used in the mining, power generation, cement, dredging, steel production, waste handling, glass production, and pulp and paper industries.
