Crusher Hammer Heads
OEM tailor design
Product name: Hammer crusher hammers,Shredder hammer,Stone crusher hammer,Hammer mill hammers
Production process:Casting
Applicable machines:Clinker crusher, raw material crusher, auxiliary material crusher, metal crusher, etc.
Applicable industries:Cement, stone,concrete, coal, steel, metal recycling, etc.
Adaptable materials: granite, basalt, limestone, river pebbles, cement clinker, quartz stone, iron ore, bauxite, salt, brick, coal, etc.
Material types: High manganese steel(Mn13Cr2/Mn18Cr2), high manganese steel ｉｎｓｅｒｔ titanium alloy bars, high manganese ｉｎｓｅｒｔ titanium alloy bars and hardfacing, bimetal composite, high chromium cast iron, alloy steel, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.
5. Provide free quotation, worldwide sales, short delivery cycle, low price.
If you need detailed technical information of the product or cannot find the product you need on the website, please email us（zhiliwearparts@lyzhili.com）, because we are a customized factory for crusher spare parts.

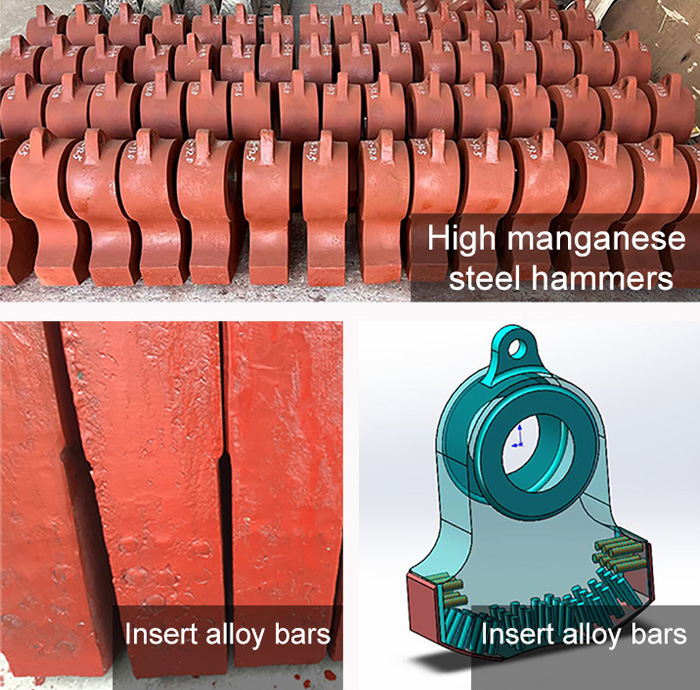

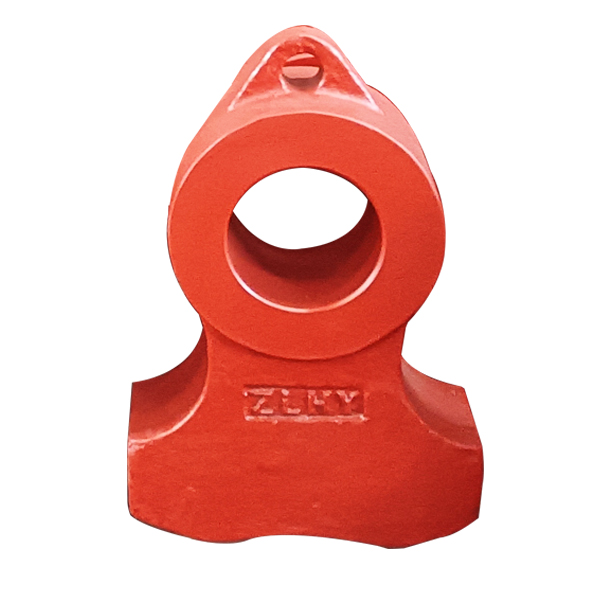

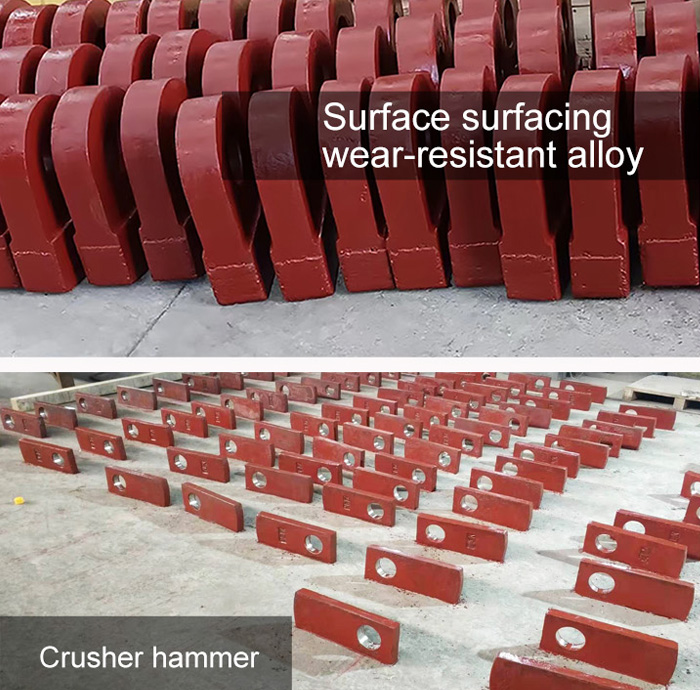

The materials of high manganese steel hammer heads include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 ｉｎｓｅｒｔ titanium alloy bars and hardfacing.

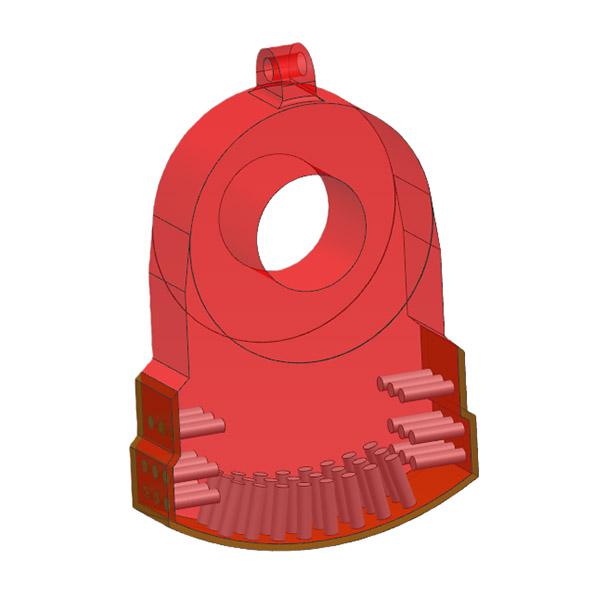

When the high manganese material bear large impact force from Stone, its surface hardening quickly and forms the wear resistance surface layer. The ｉｎｓｅｒｔ hard alloy bars had good performance anti-friction ,hardness & toughness
Features:Good toughness, good manufacturability, low price, but the overall performance of the crusher requirements are higher.
Applicable working conditions: Suitable for cement plant, metal recycling, stone factories and other rocky places with poor conditions.
Chemical component
|
Grade |
Chemical component% | |||||
|---|---|---|---|---|---|---|
| C | Si | Mn | Cr | S | P | |
| ZG120Mn13 | 1.05~1.35 | 0.3~0.9 | 11~14 | - | ≤0.06 | ≤0.04 |
| ZG120Mn13Cr2 | 1.05~1.35 | 0.3~0.9 | 11~14 | 1.5~2.5 | ≤0.06 | ≤0.04 |
| ZG120Mn17Cr2 | 1.05~1.35 | 0.3~0.9 | 16~19 | 1.5~2.5 | ≤0.06 | ≤0.04 |
|
1：Allowed to add microscale V,Ti,B and Re etc. 2：We can produce the other grade high manganese steel hammer according to customers’ requirments 。 |
||||||
Mechanical Property
|
Grade |
Stretch property |
Hardness HB |
|||
|---|---|---|---|---|---|
| yield strength ReH/Mpa | tensile strength Rm/Mpa | Elongation at cross section % | Shock absorption energyKu2J | ||
| ZG120Mn13 | - | ≥685 | ≥25 | ≥118 | ≤300 |
| ZG120Mn13Cr2 | ≥390 | ≥735 | ≥20 | - | ≤300 |

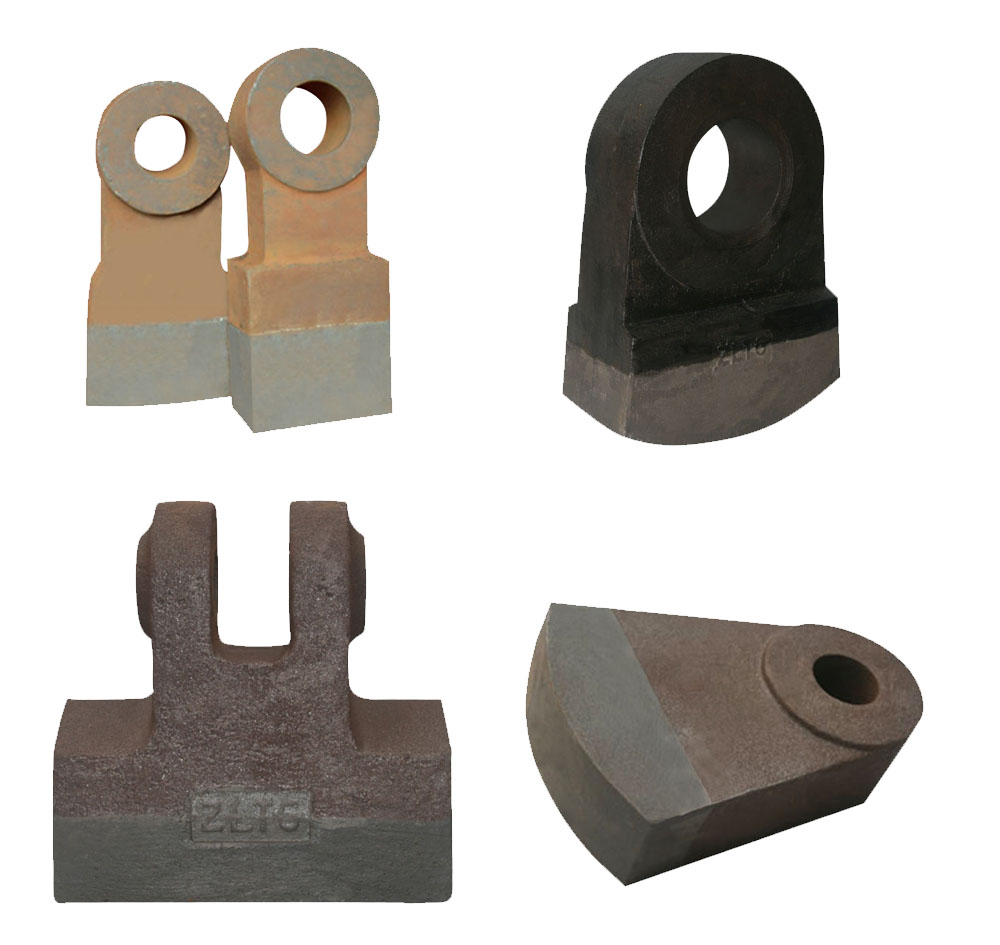

The working part of the crusher hammer head is made of high-wear-resistant high-chromium cast iron, and the handle is made of high-toughness alloy steel.
Features: High wear resistance
Applicable working conditions: Limestone, cement clinker, iron ore, sandstone, coal gangue, basalt and other hard stone crushing fields.
We use proper alloying and and related technological measures to make High chromium iron hammers’ surface hardness reaches more than 58HRC , during the process of wearing will maintain high hardness and high wear resistance.
Applicable working conditions: Suitable for making wearable spare parts with lower impact load and simpler shape.
Chemical component
Grade | Chemical component% | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | Cr | Mo | Ni | Cu | S | P | |
| BTMCr15 | 2.0~3.3 | ≤1.2 | ≤2.0 | 14~18 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| BTMCr20 | 2.0~3.3 | ≤1.2 | ≤2.0 | 18~23 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| BTMCr26 | 2.0~3.3 | ≤1.2 | ≤2.0 | 23~30 | ≤3.0 | ≤2.5 | ≤2.0 | ≤0.06 | ≤0.10 |
| 1：Allowed to add microscale V,Ti,Nb,B and Re etc. 2：We will choose grade and specific component according to blow bars’ weight ,thickness and sizes | |||||||||
Mechanical Property
Grade | Surface Hardness | |||||
|---|---|---|---|---|---|---|
Casting condition | Harded condition | Softening annealing condition | ||||
| HRC | HB | HRC | HB | HRC | HB | |
| BTMCr15 | ≥46 | ≥450 | ≥58 | ≥650 | ≥41 | 400 |
| BTMCr20 | ≥46 | ≥450 | ≥58 | ≥650 | ≥41 | 400 |
| BTMCr26 | ≥46 | ≥450 | ≥58 | ≥650 | ≥41 | 400 |
